Data Enabler Pro gen3 Status Indicator Functions

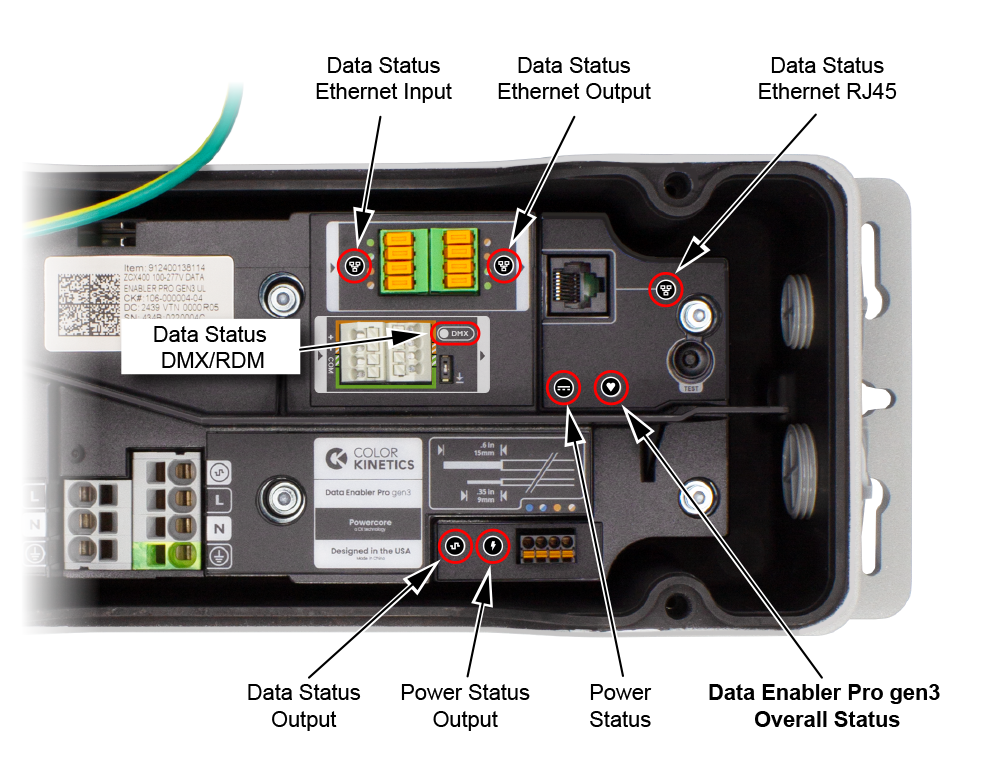

The eight status indicators that Data Enabler Pro gen3 features offers detailed information helpful in knowing how Data Enabler Pro gen3 is performing, and for troubleshooting issues that may arise.

Indicator	Status - color and pattern showing	Description
Data Enabler Pro gen3 Overall Status	*Blue - slow flashing (3 second period)*	PDS *Normal operation*
	Blue - quick flashing (0.5 second period)	PDS in bootloader mode
	Blue - solid on	Power present, but firmware not active
	Repeating color wash with 10 second cycle time	Contractor test mode active; color is indicative of RGB color sent to luminaires
Power Status	*Green - solid*	*Normal operation*
	Off	Internal power not present
	Yellow - solid	Internal power fault
Power Status Output	*Green - solid*	*Output power enabled*
	Off	Output power disabled by user
	Green - slow flash	Output power disabled by system
Data Status Ethernet RJ45	Blue - flashing	*Ethernet input port Ethernet link and activity*
	Blue - solid	Ethernet input Ethernet link / no activity
	Off	Ethernet input port no link or activity
Data Status Ethernet Input	Blue - flashing	Ethernet input port Ethernet link and activity
	Blue - solid	Ethernet input Ethernet link / no activity
	Off	Ethernet input port no link or activity
Data Status Ethernet Output	Blue - flashing	Ethernet input port Ethernet link and activity
	Blue - solid	Ethernet input Ethernet link / no activity
	Off	Ethernet input port no link or activity
Data Status Output	Green - Data TX low	*Output data being transmitted on Powercore data line*
	Off	Powercore data line idle / no Accent link
	Blue - flashing	Accent port link and activity
	Blue - solid	Accent port link / no activity
	Cyan - solid	Powercore output data + Accent link no activity
	Cyan - flickering blue or green	Powercore and Accent data output
	Red/Magenta/yellow/white	Powercore data terminal overvoltage or miswire
Data Status DMX/RDM	Blue - solid or very rapid flashing	Normal operation of DMX port - Data being received at DMX port
	Green - solid or very rapid flashing	Data being output from DMX port
	Off	No data being sent or received at DMX port
	bluish-green solid or very rapid alternating or flashing	Mix of data transmit and receive on DMX port
