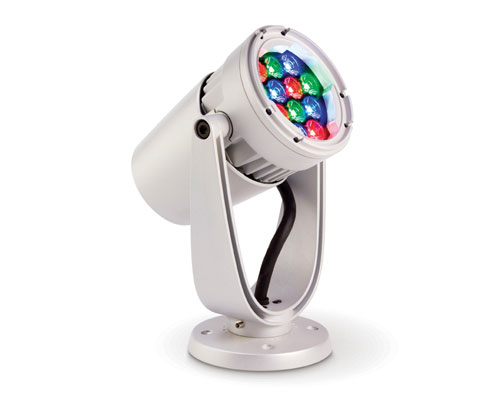

ColorBurst Compact Powercore, Architectural - RGB

安装指示

PDF-000261-08 R03

25 十月 2019

必须根据所有国家和地方的电气和施工准则及规范,由符合资格的电工进行安装。
安装该产品之前,请先访问产品页面 www.colorkinetics.com 以获取最新版的安装说明。由于在不断地改进和创新,安装说 可能会有所改动,恕不另行通知。

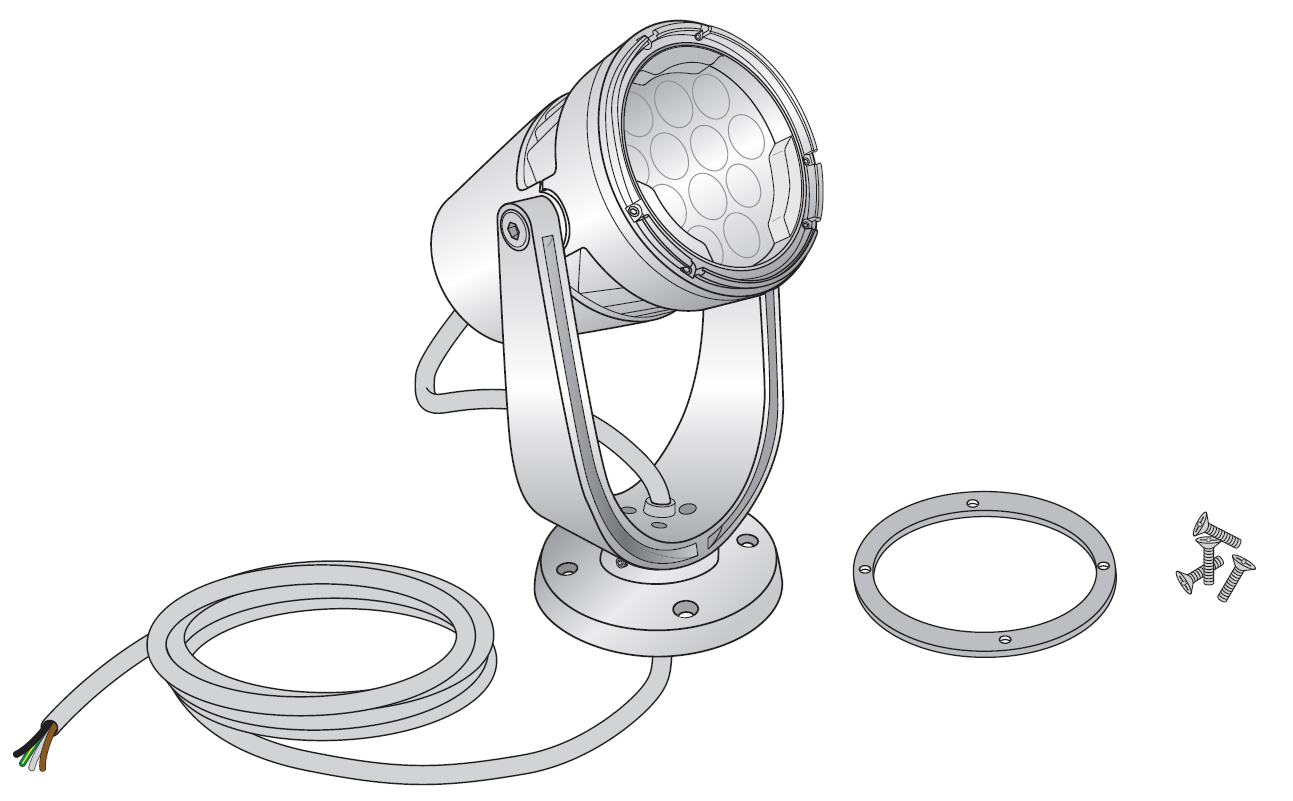

  1. 确认收到了所有部件

  1. 验证电气计划和所有必要的浪涌保护要求。

使用 Configuration Calculator 可帮助识别和定位所有照明器,Data Enabler Pro设备和控制器,并根据型号,线路电压,电路负载和电缆长度计算每个电路可支持的照明器数量。

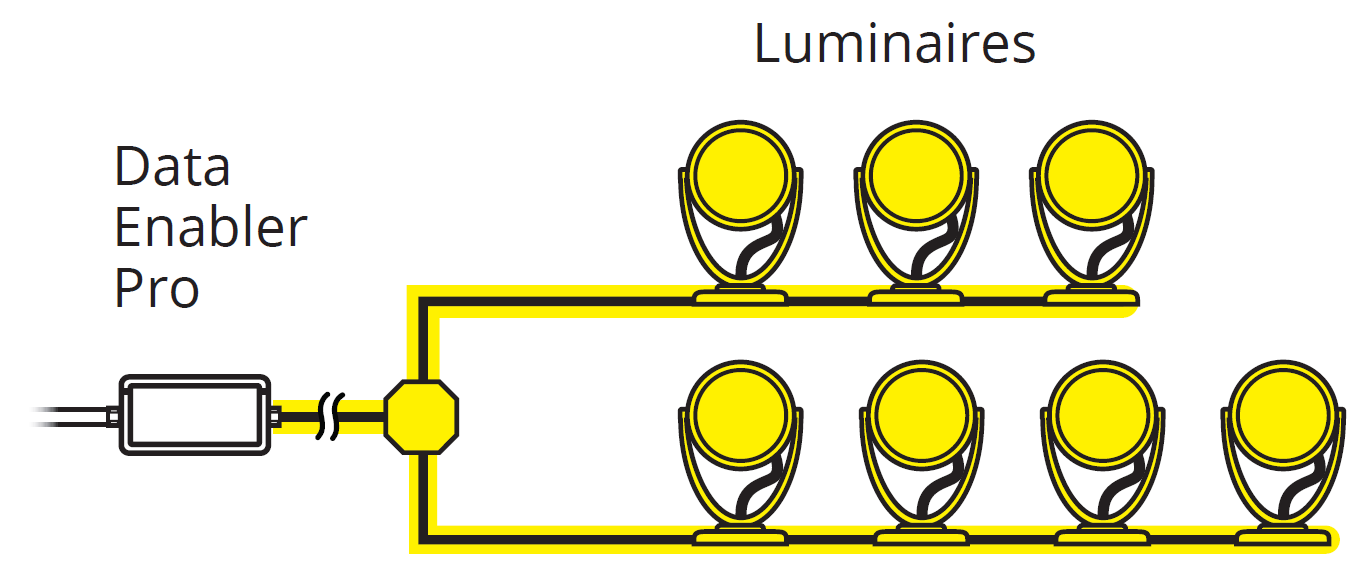

制限 数据控制限制

53.3 m 最大单线长度
53.3 m (175 ft) maximum individual length

122 m 最大总长度

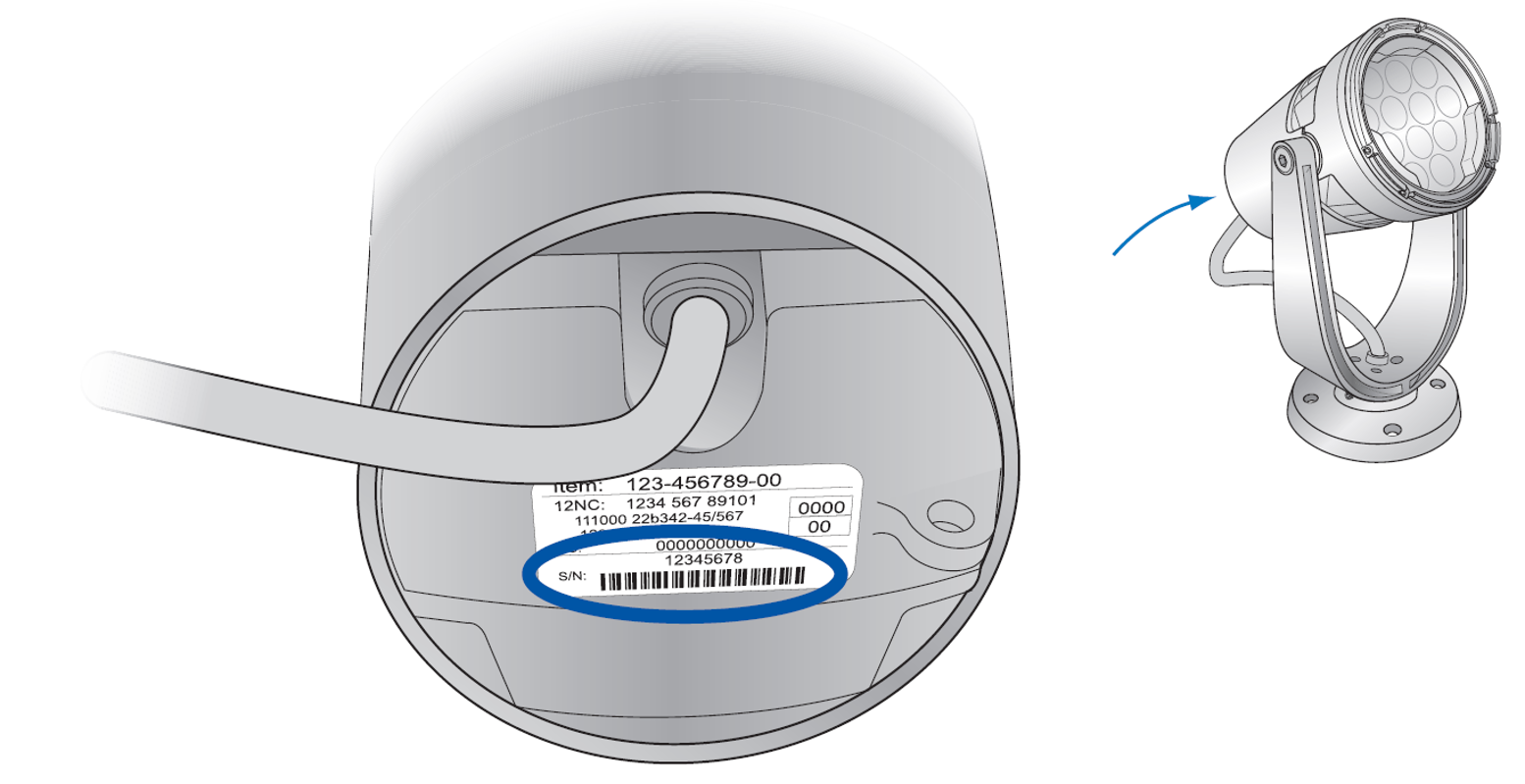

  1. 记下各灯具的位置和序列号,以便查询

  1. 确保电源关闭

  2. 拆除电缆线 (可选)

松开电缆线扣

Loosen cable compression

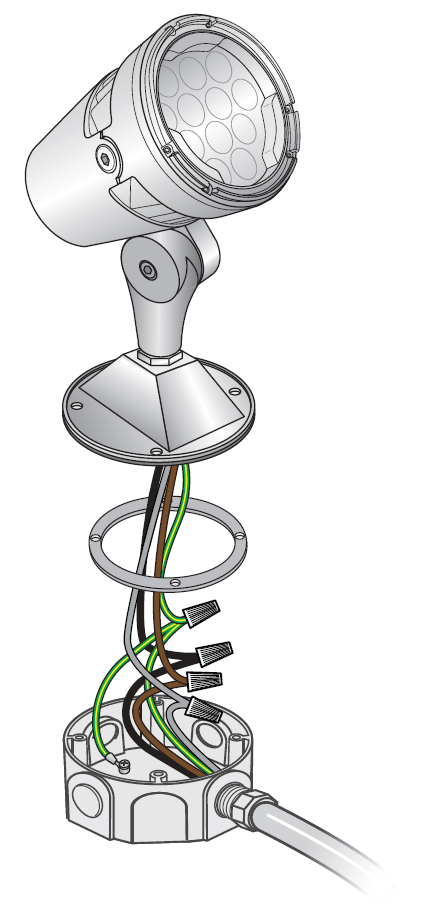

  1. 连接灯具

  1. 固定好接线和顶盖。

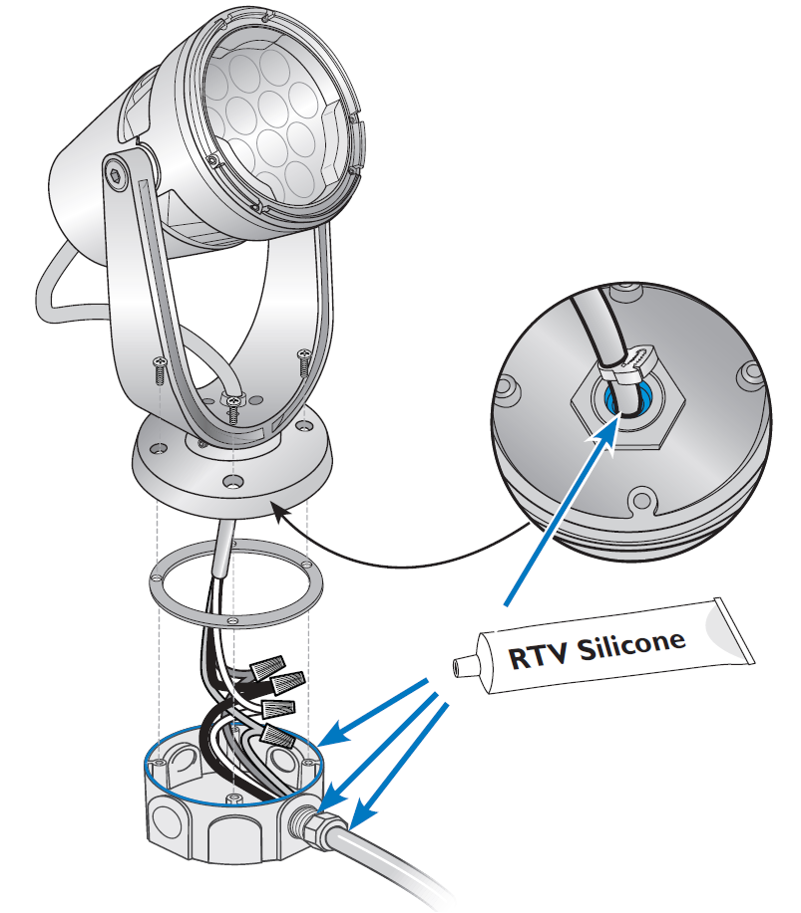

在潮湿环境下,请使用RTV硅胶密封防水接线盒的所有入口,以防渗水。

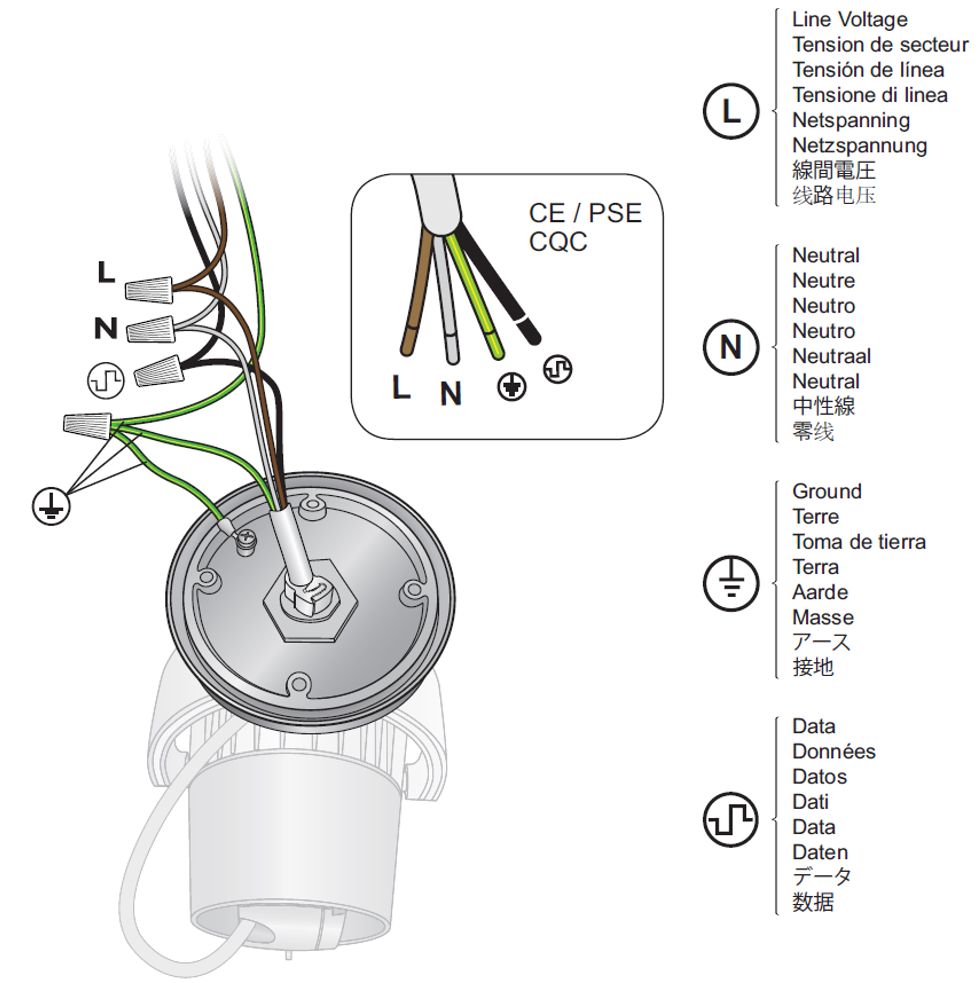

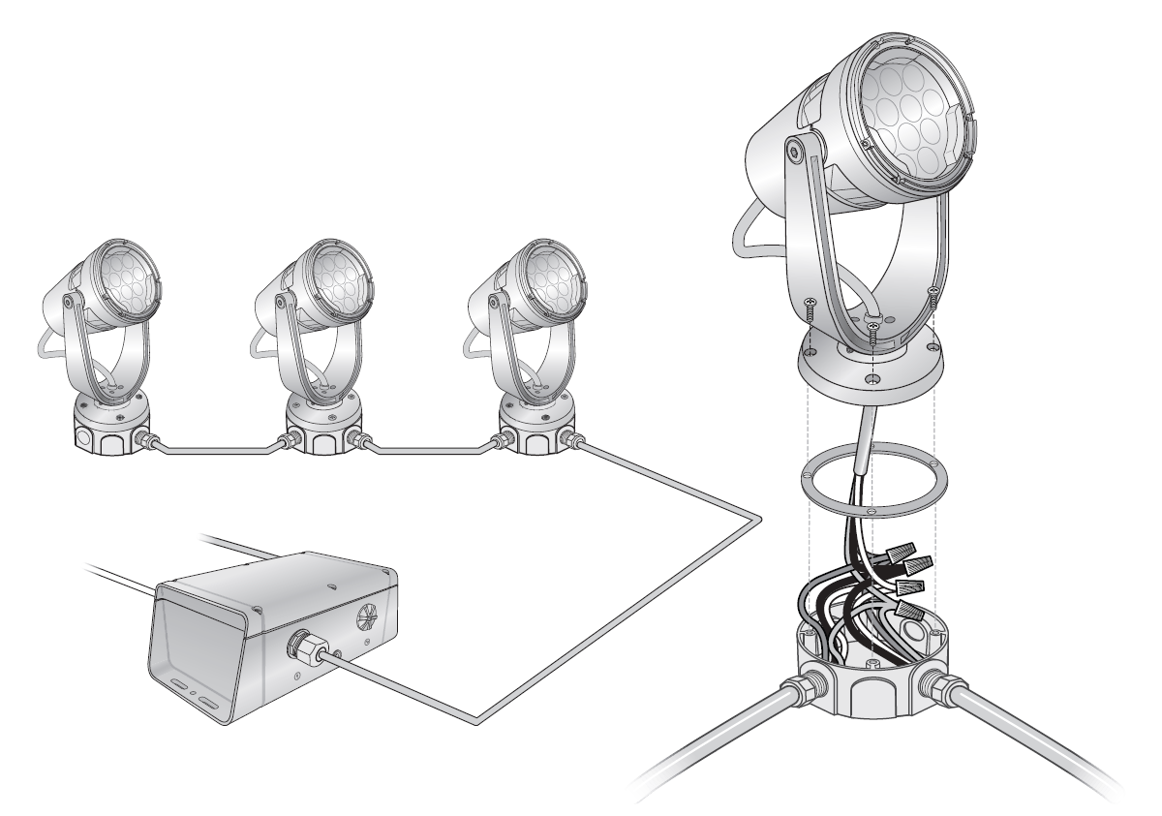

  1. 连接引线电缆

有关特定安装和布线说明 Data Enabler Pro, 请参阅数据启用程序专业安装说明
  1. 打开电源

    使用 QuickPlay Pro software 软件配置各灯具

  2. 连接配件 (可选)

建筑安装臂 (可选)

安装详细信息:请参阅 Mounting Arm Installation Instructions

  1. 将灯具瞄准目标区域

切勿直视光束.
在拧紧螺纹之前,将Locktite 263涂抹于螺纹上。
  1. 连接安全绳

对灯具进行安装或接线前,需确保主电源已关闭。
阅读并理解安装说明和安全标签之前,切勿试图安装或使用灯
如果灯镜片、灯壳或电线受损,切勿使用产品。
灯具存在线电压电击的危险,且无用户可修理的部件。切勿试图打开产品。
切勿在任何非额定电压的情况下,使用产品。切勿超出灯具规定的电压与输入电流.
切勿热插拔产品。连接或断开单个灯具之前,必须确保供该系列之电源已关闭。
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required to correct the interference at his own expense.
Warning - This is a Class A product. In a domestic environment this product may cause radio frequency interference in which case the user may be required to take adequate measures.
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
产品在 220V条件下,额定输入电流最大为0.17A,功率因素大于或等于0.9
The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed. 此灯具的外部软缆或软线不能替换;如果软线损坏,该灯具即应报废
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. 此灯具内的光源应由制造商或其服务代理商或有类似资格的人来更换。
